Technical Note: 20050331001

5 Levels of Floor Plans

(Maitre'D 2005 and later versions of Maitre'D)

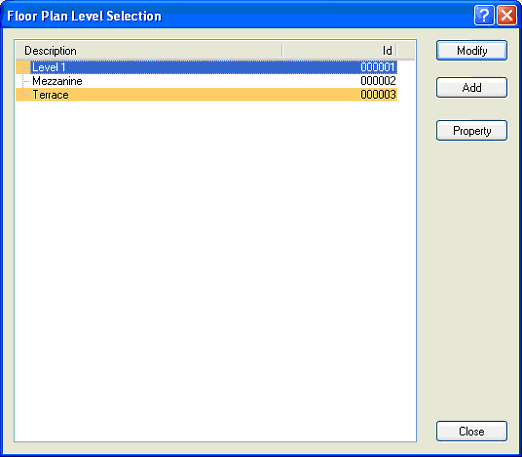

Floor Management / File / Floor Editor

You can set up to five floor plan levels, with their own layouts.

Floor Management / File / Floor Editor / Property

Level Description:

Enter the floor plan name.

Background Image:

Select the floor plan background.

Floor Management / File / Floor Editor / Modify

The floor plan editor shows the image selected in Property as the background.

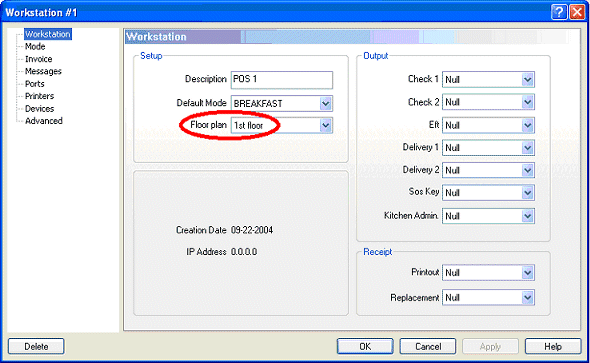

P.O.S. Control / Workstation / Options

Floor Plan:

Select the default floor plan for this workstation's screen saver.

P.O.S. Control / Employees / Screen Access

Floor Plan:

Select the default floor plan for employees using this screen access.

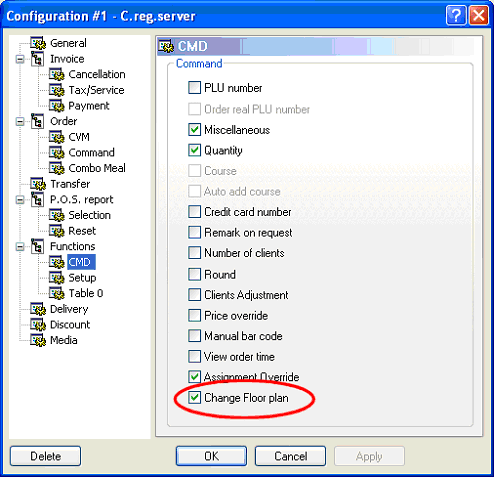

P.O.S. Control / Employees / Configuration / Functions / CMD

Change Floor Plan:

Enable this option to allow employees to change floor plans on the workstation.
