Technical Note: 20011004076

Bar Code on Check

(Maitre'D 2002, and later versions of Maitre'D)
You can print the bar code of the guest check number as well as the invoice number itself on printers that support this feature. That bar code can then be scanned at the cashier workstation for quicker bill settlement.

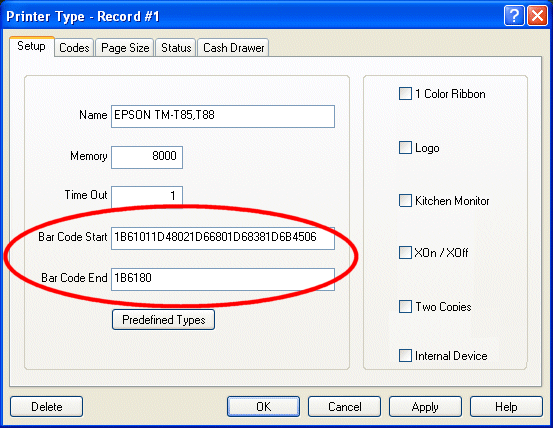

P.O.S. Control / Workstation / Printer Type / Setup

Bar code Start:

1B61011D48021D66801D68381D6B4506 for 6 digits, or
1B61011D48021D66801D68381D6B4507 for 7 digits

Note: You will need 7 digits when you reach check number 1 million, and 8 digits when you reach 10 millions.

Bar code End:

1B6180

Note: These hexadecimal codes are valid for the EPSON TM-T85/88 printers. See with your printer manufacturer or supplier for proper codes of different printers.

P.O.S. Control / View / Options / Check

Print Bar Code on Check:

Enabled
