(Maitre'D Millennium, and later versions of Maitre'D)
Posera CVM monitors are fully integrated in Maitre'D, and can be easily
programmed. It also supports on the fly display, showing on the
CVM monitor the item as soon as the next item is selected. Posera CVM
screen can also support remote display.
Steps of setting up a CVM monitor with or without a remote display.
System Configuration / View / Option / Devices
Kitchen Monitor:
Select Posera CVM if you use a CVM monitor from
Posera.
Select Posera CVM with remote display if you
use a CVM monitor from Posera with AccuVIEW remote display.
Setup the printer type for the CVM monitor
P.O.S. Control / Workstation / Printer Type
Select a printer type that you will never use. Ex. S100 printer product,
and from there touch the "Predefined Types" button. From the
drop down arrow select "CVM – MAITRE D", and hit OK.
P.O.S. Control / Workstation / Shared Printer
This option allows to setup the connection of your physical printers,
or shared kitchen monitors from the Back-Office. This option affects directly
the redirection table, and printer communication. Therefore, be careful
when changing the shared printer settings.
Description
Type in the name for the physical printer, or the kitchen monitor you want
to connect to the workstation.
Printer Type
Select the type of physical printer, or the CVM – MAITRE D, if your sending
to a kitchen monitor.
Workstation
Choose a workstation from the list.
Port
Select the port of the workstation, the printer or the kitchen monitor
is connected to.
Printout
Select a printer which data from all workstation is redirected.
Note: It should be the same as the description field.
Replacement
Select the printer that will replace the original printer, in case the
main printer is not responding. Back-Office will send all data to the
new printer.
P.O.S. Control / Workstation / Logical Printer
This option allows to program logical printers on different locations
in the restaurant. Logical printers are conceptual (not physical) printers,
which are used to program menus. Example, you can program different logical
printers for Grill, Cold Table, and Desserts with a single physical printer
on a workstation.
The Back-Office separates all orders by logical printers, and prints different
receipts on the physical printer, or shows the order on the kitchen monitor
(CVM). You may also use logical printers to distribute orders to different
locations, and or different kitchen monitors. Example: There are two kitchens
(Dining and To Go), with a CVM monitor in each. In a non-peak period,
the Dining kitchen is closed. The workstations set to logical printer
Kitchen have orders which go to either the Dining or To Go CVM monitors
during peak times, and redirect to the To Go CVM Monitor during non-peak
times. The Redirection Table option, is used to program logical printers
to the physical printer of your choice.

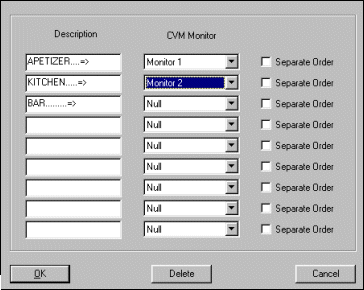

Description
Type a description for the logical printer.
CVM Monitor
Select the monitor where you want to send the items, linked to each logical
printer.

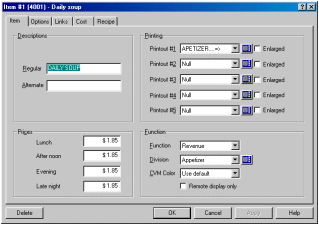

P.O.S. Control / Revenue Center / Item Setup / Item / Function
CVM Color:
Maitre'D uses the default colors, unless otherwise. If you wish to use
this field, select a color, and the item will appear on the kitchen monitor
using the color specified in "CVM Color" field. Choices are;
Blue, Green, Cyan, Red, Purple, Yellow and White.
Note: Since both the Regular and Alternate descriptions are sent to
the CVM, the color will affect both descriptions.
P.O.S. Control / Employee / Employee Configuration / Order / CVM
On The Fly Printing:
Enable this option to show the items on the kitchen monitor as soon as
they are selected on the order screen (displayed on the CVM upon entry).
If disabled, the items appear only when the order is sent to the kitchen.
Remote Display Field:
Enable this option to show the items, sub-total, taxes and total on the
AccuVIEW remote display.
Note: the AccuVIEW remote display is connected to the Posera CVM computer.
Display at the Bottom:
Enable this option to display items at the bottom of the kitchen monitor.
This is useful for example, to separate takeout and Drive-Thru orders
from Eat In orders on the same screen.
