Technical Note: 20050308028

Concord (EFSnet) Gift Cards through GIFTePAY (USA)

(Maitre'D 2003, from Service Pack 8 and later versions of Maitre'D)

You can use Concord Gift Cards under the DSIClientX protocol.

Transactions supported

• Activation - Multiple activation

• Increment

• Cancellation - Table 0 void

• Redeemed

Note: No reports are available in Maitre'D. They are found on the Concord site, and in the GIFTePay administrator program.

What is needed:

From Posera:

• EFT interface

• Gift Certificate interface

From Datacap:

• GIFTePay for Concord (EFSnet)
• DSIClientX (Version 3.60 or above)

Datacap contact: Stephanie Heim 215-997-8989

From Concord EFSnet:

• EFSnet URL
• Assigned Store ID
• Assigned Store Key

Concord contact: Sales 877-563-3804
sales@concordefsnet.com

Requirements:

• Microsoft Windows Windows XP Pro (SP2), with Microsoft Internet Explorer 5.5 or later with 128-bit encryption, as required by NETePay.
• 256 MB of memory
• 1 GB Hard-Disk space
• TCP/IP network
• Internet connection (Dial access that holds an open line will also work due to low bandwidth requirements)

Installing the DSIClientX control

The DSIClientX control is not included in Maitre'D installation. This application is an XML ActiveX client controlled software that sends encrypted payment authorization requests via a local area network or Internet to Datacap's dial and Internet payment servers.

The control is available as a free 5mb self installing executable from http://www.datacapepay.com/
It may be installed before or after Maitre'D and takes just a minute to install (requires a reboot).

DO NOT TRY TO SKIP THIS STEP !!!!!

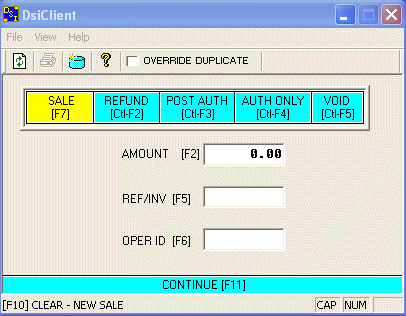

DSIClientX Installation:

• Install DSIClientX
• Configure DSIClientX - DSIClientX in file / setup

Server IP Address:

Address of the computer where the DSIClientX installed.

Note: Do not use the 127.0.0.1 local host loop back address, even if on same computer as Maitre'D. Use the exact address, such as 192.168.100.1

Merchant Category:

ID:

Local

GIFTePay Installation:

Install GIFTePAy for Concord (EFSnet)

 Get your activation code from Datacap at activate@dcap.com

1. To do so, start GIFTePay , click on Activate.

2. You will get a screen showing a serial number, a session code and a machine id.

3. Forward that information to activate@dcap.com

4. When you get the answer, enter the code in the ENTER CODE box in setup / setup information.

Note: The remaining information will be supplied by the merchant services provider.

Maitre'D Setup

Server Control / View / Options / Gift Certificate

Provider:

EFT Gift Cert.

Merchant Number:

Merchant number received from Concord EFSnet.

Split Tender Transaction:

In Maitre'D 2005 SP4 HF13, enable this option to accept partial payment from a Gift Card whose available amount is lower then the invoice's total. In such a case, the card is emptied, and the remaining amount must be closed with another payment type.

Note: In Maitre'D 2003, under the C:\Posera\MaitreD\Data directory, in the GiftCert.ini file, add the following configuration key and value:

SplitTenderTransaction=1

Server Control / View / Options / Gift Certificate / Communication

Time Out:

150

Retry Delay:

3

IP Address:

Address of the computer where the GIFTePay for Concord is installed.

Note: Do not use the 127.0.0.1 local host loop back address, even if on same computer as Maitre'D. Use the exact address, such as 192.168.100.1

TCP Port:

9100

Password:

Leave blank

Server Control / View / Options / Gift Certificate / Option

Use Registration Function:

Disabled

Use Increment Function:

Enabled

Cancel Issue:

Disabled

Multiple Activation:

In Maitre'D 2005, enable this option to allow for many Gift Card activations before asking for the payment type, to be able to use the same media, such as a pre-authorized Credit Card with Electronic Funds Transfer.

Note: In Maitre'D 2003, to track these folios, add the following configuration key and value in the POS.INI files of all workstations:

MultiGCActivation=False

Note: This removes the ability to track the activated folios in the Back-Office.

Do Not Send Terminal ID:

Disabled

Note: Remaining options set as per customer preferences.

Gift Card Sold Setup

P.O.S. Control / Payments / Media Types / Gift Card Sold / Payment # 36

Payment type:

Gift Card Redeemed Setup

P.O.S. Control / Payments / Media Types / Gift Certificate / Payment # 2 through #  24

Description:

Type in a description for the Gift Cards. This description is displayed on the workstations when employees select this media type and printed on readings.

Payment Type:

P.O.S. Control / Payments / Media Types / Gift Certificate / Option

Folio:

Note: Remaining options set as per customer preferences.

P.O.S. Control / Payments / Media Types / Gift Certificate / Card Property

Card Type

EFT Category:

Electronic Fund Transfer:

Note: All other options disabled

Card Validation

Custom Card:

P.O.S. Control / Employee / Configuration /  Payment

Enable both the media type created for the gift cards to allow these employees to accept and/or sell gift cards.
