To access this application, double click on the Icon in the task bar.
The following screen displays:

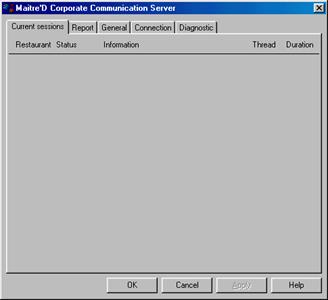

Current Sessions
This page shows you information regarding the current session of file importation
such as;
Restaurant Status
Information received
Thread
Duration

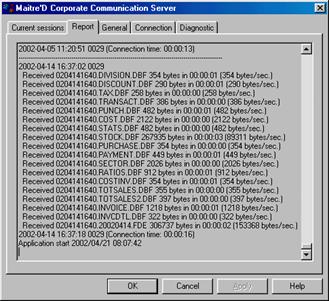

Report
This report will show information on the communication operation such as
files received and starting time of the application. This information
is also included in the log journal but more accessible for the end user.

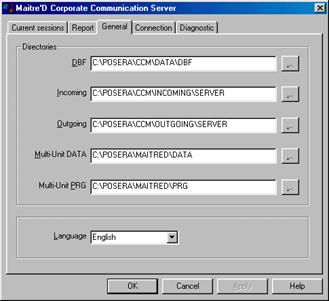

General
DBF
Enter the path where you want to store the information that will be available
for the Database Manager and Analyzer applications.
Incoming
Enter the path where you want to store the information received by the
Communication Client application. The default path is C:\POSERA\CCM\INCOMING\SERVER.
Outgoing
Enter the path where information is stored that will be sent to the Communication
Client application. The default path is C:\POSERA\CCM\OUTGOING\SERVER.
Multi-Unit DATA
The path where all sub-directories are stored C:\POSERA\MAITRED\DATA.
Multi-Unit PRG
All programs of the restaurants are stored in C:\POSERA\MAITRED\PRG

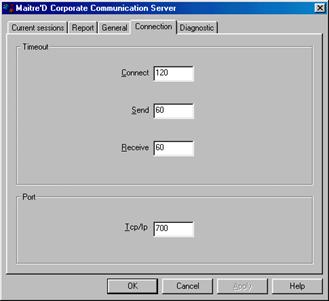

Connection
Connect
Enter in seconds the time-out before the Communication Server will disconnect
if it has not been able to synchronize with the Communication Client PC.
Send
Enter in seconds the time-out before the Communication Server will disconnect
if after synchronization, the Communication Server PC is not able to send
data.
Receive
Enter in seconds the time-out before the Communication Server will disconnect
if after synchronization, it did not receive any data.

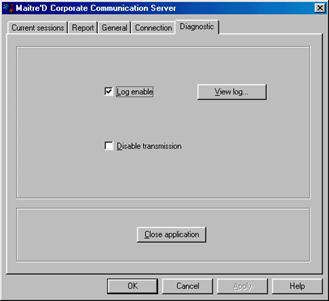

Diagnostic
Log Enable
Select this option to start a log file of all connection operations.
View Log
Touch this button to see a log of all connection operations. If you wish
to reset that file, it is usually located in the \POSERA\CCM directory.
The file name is TCPSLOG.TXT. This report is for the system administrator
only.
Disable transmission
Enable this option to disable the transmission to Communication Client
PC.
Close application
Touch this button to close the Communication Server application. If you
do so, the Communication Server icon will be removed from the task bar
and the Communication Server application will no longer be active.
