Technical Note: 20090113046
MoneyLine Connected Device
(Maitre'D 8.00.000.057 and later versions of Maitre'D)
Maitre'D accepts Electronic Funds Transfer through MoneyLine in Connected
Mode, where the MoneyLine software runs on each workstation, as opposed
to only running on the Main Back-Office Server.

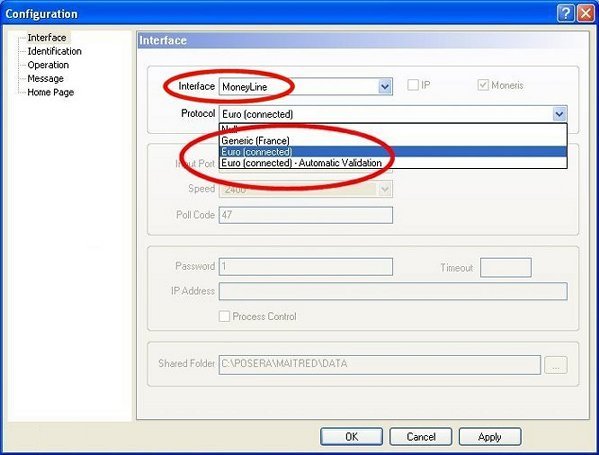

Electronic Funds Transfer / View / Options / Interface
Interface:
MoneyLine
Protocol:
Euro (connected), waits
for Remote Validation from MoneyLine software before exiting payment screen,
or
Euro (connected) - Automatic Validation, exits payment screen as
soon as MoneyLine software acknowledges EFT request.
Note: In the second case, if the transaction is refused, the employee
must go back to the invoice payment and modify it.

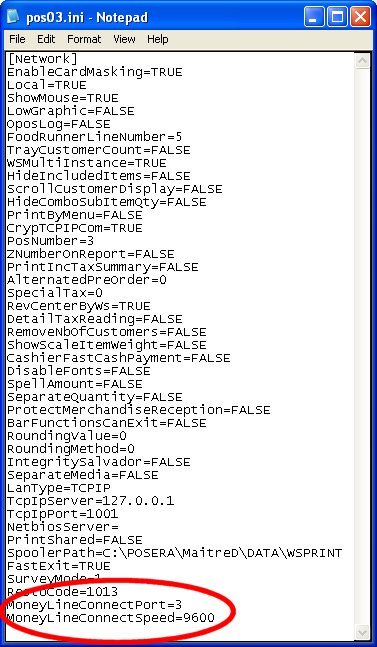

Pos.ini
To use this Connected Mode, under the C:\Posera\MaitreD\Data
directory, in the Pos??.ini file (you will need to do it for every Pos
Ex.: Pos01.iniX, Pos02.ini), add the following configuration keys &
values:
MoneyLineConnect=p
MoneyLineConnectSpeed=rrrr
where p is the serial port the MoneyLine device is connected to,
and rrrr is the MoneyLine device's baud rate. (9600 is the default speed)
