Technical Note: 20071029002

Spark 617 Fiscal Printer for Russia

(Maitre'D 2005, from Service Pack 4 Hot Fix 13 and later versions of Maitre'D)

Maitre'D supports the Spark 617 Fiscal Printer for Russia.

Required Software and peripherals driver

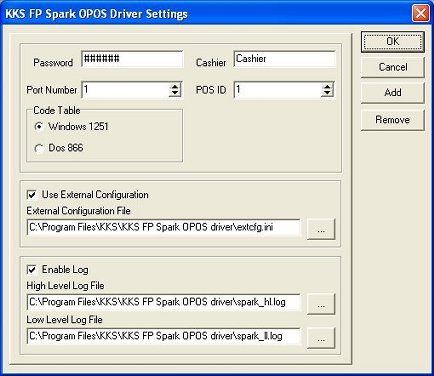

KKS Fiscal Printer Spark OPOS Driver Settings

Port Number:

Com port of the workstation's where the fiscal printer is connected.

Code Table:

Windows 1251

Use External Configuration:

Enable this option to ignore the Cashier and POS ID fields of this setting page, and allow multiple employees to use the fiscal printer on the same fiscal day.

Maitre'D Workstation OPOS Driver Setup

During the Maitre'D POS Workstation installation process, when the system prompts to install OPOS drivers, click YES.

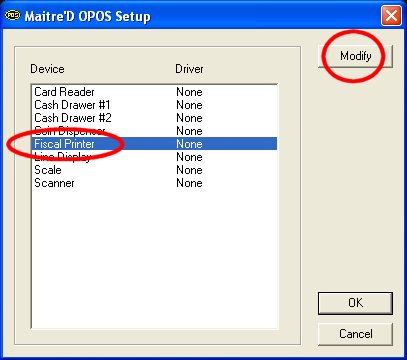

Maitre'D OPOS Setup

Select the Fiscal Printer line, and click on MODIFY.

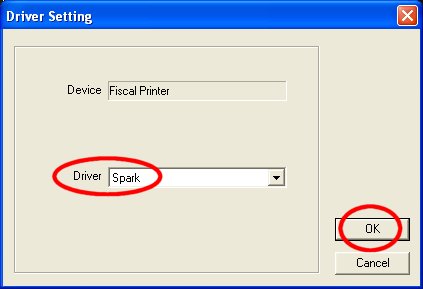

Maitre'D OPOS Setup / Driver Setting

Driver:

Spark

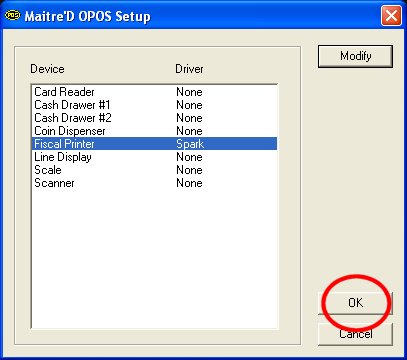

Click on OK, and then on OK again.

Maitre'D Back-Office Setup

P.O.S. Control / Workstation / Options / Devices

Click Add.

P.O.S. Control / Workstation / Options / Devices / Add Device

Select the Fiscal Printer line, and click on SETUP.

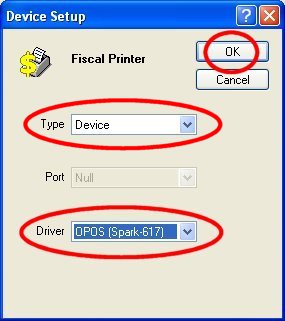

P.O.S. Control / Workstation / Options / Devices / Add Device / Device Setup

Type:

Device

Driver:

OPOS (Spark-617)

Click on OK, and then on OK again.

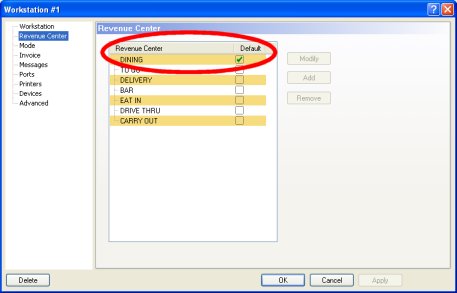

P.O.S. Control / Workstation / Options / Revenue Center

Default:

Enable the main menu of the workstation.

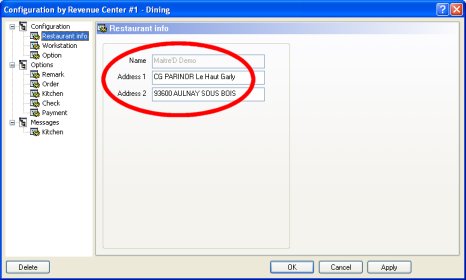

P.O.S. Control / Revenue Center / Options / Restaurant Info

Address 1 and 2:

Enter the location of the restaurant in the Default revenue center of the workstation.

Note: Any changes to the address will only start printing on the very first check processed after the end of the printer's fiscal day.

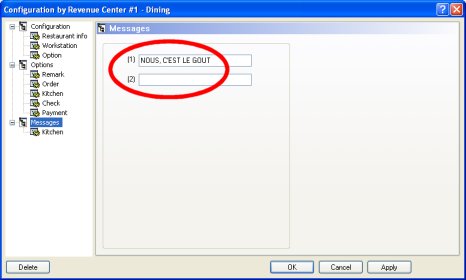

P.O.S. Control / Revenue Center / Options / Messages

1 and 2:

Enter any other marketing or special message.

Note: Any changes to these messages will only start printing on the very first check processed after the end of the printer's fiscal day.

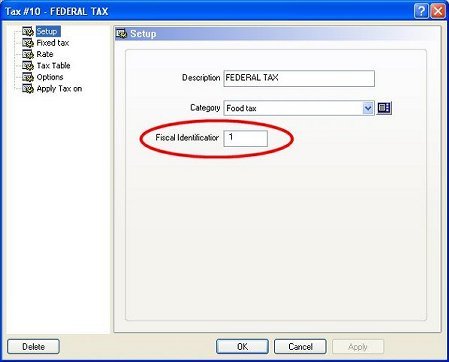

P.O.S. Control / Payments / Taxes / Setup

Fiscal Identification:

Enter the VAT Entry number to use from the VAT Table of the OPOS Driver for Spark 617 TF.

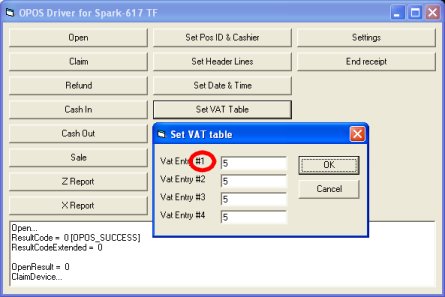

Fiscal Printer "Spark" Demo / Open / Claim / Set VAT Table

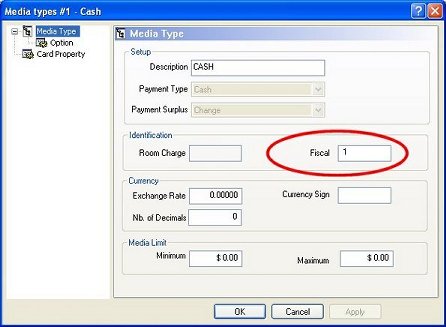

P.O.S. Control / Payments / Media Type

Fiscal:

Enter the Payment Means number to use from the Fiscal Printer "Spark" Configuration.

Fiscal Printer "Spark" Configuration / Payment Means

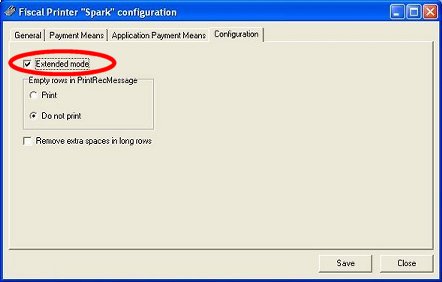

Fiscal Printer "Spark" Configuration / Configuration

Extended Mode:

Enable this option to allow printing of check settlement information and footer between the total and the paper cut.

Note: The Use External Configuration option must also be enabled in KKS Fiscal Printer Spark OPOS Driver Settings

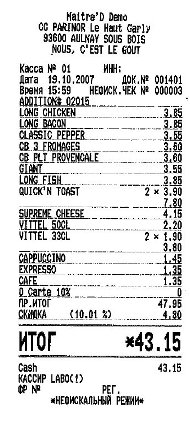

Here is an example of a Fiscal Printer Check.

Note: If the Fiscal Printer is not responding for any reason, the workstation will display error message, and will NOT allow any operation until the printer is made operational.

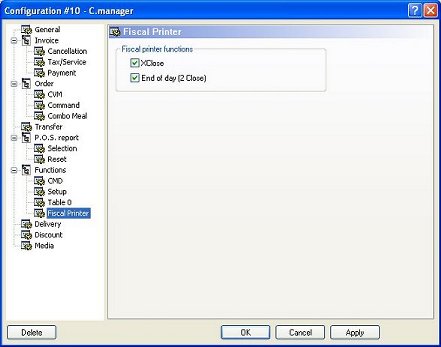

P.O.S. Control / Employee / Configuration / Functions / Fiscal Printer

XClose:

Enable this option for the manager configuration so that they can print the current Fiscal Report of the printer on each workstation individually.

End Of Day (2 Close):

Enable this option for the manager configuration so that they can print the final Fiscal Report and Close the fiscal day of the printer on each workstation individually.

Note: The End Of Day has to be performed EVERY day on EACH fiscal printer.

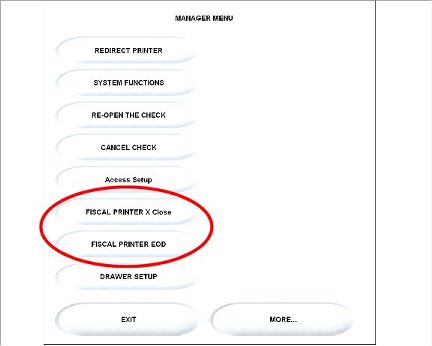

Workstation / Function / Manager Menu

Fiscal Printer XClose:

Touch this button to print the current Fiscal Report of the printer on each workstation individually.

Fiscal Printer EOD:

Touch this button to print the final Fiscal Report and Close the fiscal day of the printer on each workstation individually.

Note: The End Of Day has to be performed EVERY day on EACH fiscal printer.

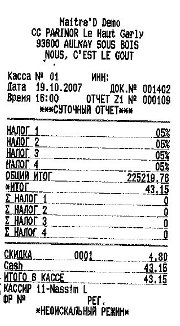

Here is an example of a Fiscal Printer Report.

Other Operations

The following operations are also supported:
