Technical Note: 20011004151

Setup for Givex with DataTran Modem

(Maitre'D 2002-2005)

The Givex interface with the datacap modem is a secure solution for gift certificates. With this solution, Givex and Maitre'D reduce fraud and duplicate use while providing tracking and reporting capabilities.

Required Maitre'D Interfaces:

• Electronic Funds Transfer
• Gift Certificate

Server Control / View / Options / Gift Certificate

Provider:

EFT Gift Cert.

Merchant Number:

Logical merchant number provided by Givex.

Directory:

Path of the folder Givex's communication engine monitors.

Log Level:

Standard. (only used if troubleshooting)

Time Out:

Delay in seconds before Maitre'D assumes Givex will not respond. 150 seconds suggested.

Retry Delay:

Delay in second between polls by the workstations to the Back-Office to verify if Givex answered. Setting this interval too short generates a lot of traffic on the network.

IP Address:

TCP/IP address or server name of the Givex server.

TCP Port:

TCP/IP port number trough which you are allowed to connect to the Givex server.

Password:

Password required to access the Givex server.

Keep Trans. Days

Number of days to keep gift certificate transactions in the archive file.

Manager Password:

Enable this option to force the use of a Maitre'D manager password to perform Gift Card functions on the workstation, such as registration, activation, increment and cancellation.

Use Registration Function:

Enable this option to allow the use of the registration function on the workstation. This allows to create a gift certificate using the workstation's printer. When the transaction is approved, 2 copies of a Givex receipt will print with a gift certificate # assigned by Givex.

Use Increment Function:

Enable this option to allow the use of the increment function on the workstation. This allows to add a dollar amount to a gift card or certificate. That feature is setup by Givex.

No Provider Selection:

Enable this option to always use Givex for gift certificates. If disabled, you will have to select between local or remote provider for each gift certificate transaction at the workstation.

Gift Card Sold Setup

P.O.S. Control / Payments / Media Types / Gift Card Sold / Payment # 36

Payment type:

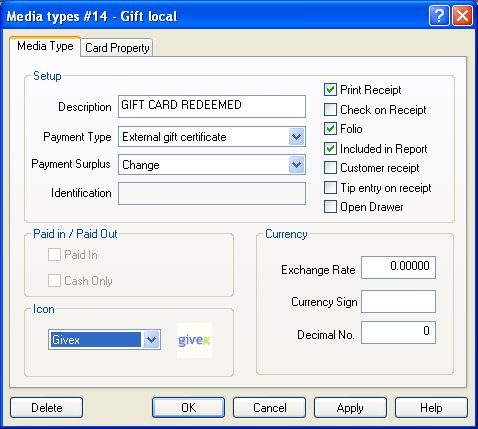

Gift Card Redeemed Setup

P.O.S. Control / Payments / Media Types / Gift Certificate / Payment # 2 through # 24

Description:

Type in a description for the Gift Cards. This description is displayed on the workstations when employees select this media type and printed on readings.

Payment Type:

External Gift Certificate.

Payment Surplus:

Change.

Folio:

Enabled (mandatory)

Print Receipt:

Optional

Included in Report:

Enable if you want gift certificate printed with the credit cards.

P.O.S. Control / Payments / Media Type / Card Property

ISO Card

Maitre'D can automatically identify a media when a card is swiped. For Givex gift certificate, this ability is limited to ISO cards.

EFT Category:

Others

Hide Card Number:

Enabled

Validation:

Enabled

Custom Card:

Enabled

Number of Digits:

Enter the length of the card. For ISO, set to 18

Card ID:

Enter the unique identifier of the card. For ISO, set to 6036

Position:

Set to 1.

Note: Other fields are left empty.

NON-ISO CARD

The configuration for the non-ISO card is the same as for the ISO card, except for the Custom Card option that is disabled.

P.O.S. Control / Employee / Configuration /  Payment

Enable both the media type created for the gift cards to allow these employees to accept and/or sell gift cards.
