Technical Note: 20031022004

SHARP UP-T80BP Printer Status

(Maitre'D 2003, from Service Pack 3 and later versions of Maitre'D)

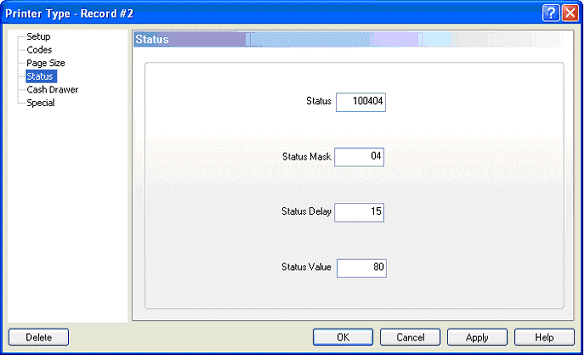

P.O.S. Control / Workstation / Printer Type / Status

Maitre'D supports the paper status of the internal SHARP UP-T80BP printer. To do so, the following status and masks must be set.

Status:

100404

Status Mask:

04

Status Delay:

15

Status Value:

80

Note: In order to use the status, the paper sensor must be installed in the SHARP Workstations. Contact SHARP to order the proper part number.
