Technical Note: 20000918033

Weigh-Tronix 6710 Scale Setup

(Maitre'D Millennium, and later versions of Maitre'D)

Maitre'D Setup

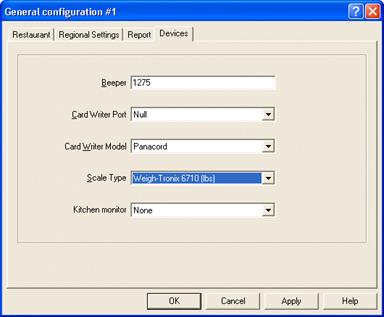

System Configuration / View / Options / Devices

Scale Type:

Weigh-Tronix 6710 (lbs)

Note: Other then the scale's weight limit, the interface is also limited to a maximum price of 99.99

P.O.S. Control / Workstations / Options / Devices / Scale

Type:

Serial

Port:

#

Driver:

Generic

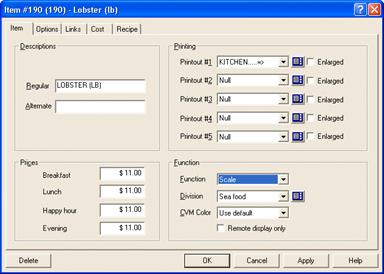

P.O.S. Control / Revenue center / Items Setup / Function

Function:

Scale

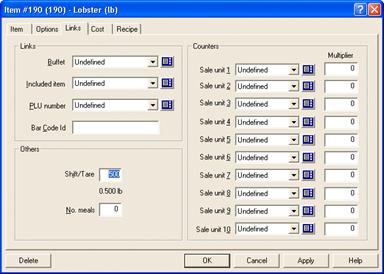

P.O.S. Control / Revenue center / Items Setup / Links

If necessary, enter a weight, in thousandth of pounds, in the Tare field.

Cabling

From            To
DB-9 Female      DB-9 Male



Pin 2  ----------------à  Pin 2

Pin 3  ----------------à  Pin 3

Pin 5  ----------------à  Pin 5

Shell  ----------------à  Shell

Pin 4  --|

Pin 6  --|-- Jumped together

Pin 8  --|

Dip Switches

1        Off

2        Off

3        On

4        Off

Scale Setup

  1. Turn Scale Off, reset Dip Switch # 1 to On, and turn Scale On,to enter Programming mode.

  2. DiaG will display at reboot. Press the 0 button, and ConF will display, to enter Configuration mode.

  3. Press the TEST button, and FiLt will display,  to enter Filter mode.

  4. Press the 0 button, and Baud will display.

  5. Press the 0 button again, and Prot will display.

  6. Press the TEST button, and nci will display.

  7. Press the 0 button, and ECR will display.

  8. Press the 0 button, and 8213 will display.

  9. Press the TEST button, and FiLt will display.

  10. Press the 0 button until done is displayed.

  11. Press the TEST button once.

  12. Reset Dip Switch #1 to Off, and turn power off and on to reboot.

Note: 6720 model only work on COM 1 and 2
