(Maitre'D 2003, from Service Pack 7 and later versions of Maitre'D)
Maitre'D supports the Delphi Remote Display connected through a workstation.
Note: In Maitre'D 2003, the CVM interface must be active on the Maitre'D
license.
System Configuration / View / Options / Devices
Remote Display:
Select Delphi to make this protocol available in the workstations.
Note: In Maitre'D 2003 Service Pack 7, this field is disabled if the
Kitchen Monitor field is set to Posera CVM. Service Pack 8 enables it.
P.O.S. Control / Workstation / Printer Type / Special
You also need to define a printer type with the Remote Display option enabled,
so it can be added as a workstation's device, and used as a shared printer.
Remote Display:
Enabled.
P.O.S. Control / Workstation / Printer Type / Status
Status:
Make sure this field is empty.
P.O.S. Control / Workstation / Logical Printer
Description:
Setup a new Logical Printer
P.O.S. Control / Revenue Center / Items Setup / Configuration / Printing
Printout #:
Setup all items you wish to send to the remote display.

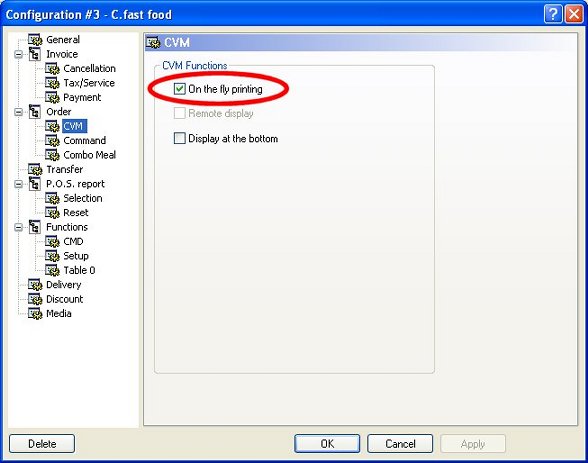

P.O.S. Control / Employee / Configuration / Order / CVM
On the Fly Printing:
Enabled.

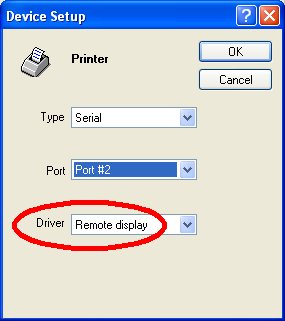

P.O.S. Control / Workstation / Options / Devices
Type:
Serial.
Port:
Select the physical serial port where the Delphi display is connected.
Driver:
Select the Delphi Printer Type.

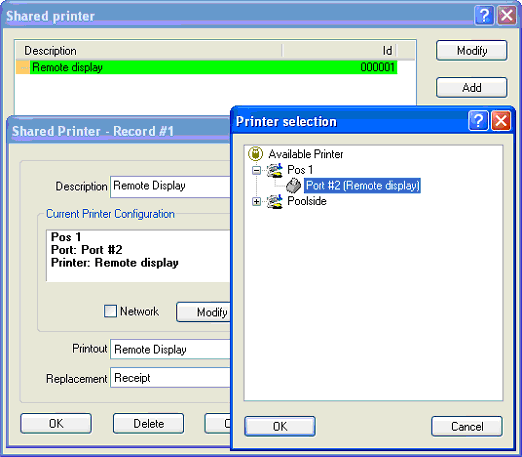

P.O.S. Control / Workstation / Shared Printers
Locate the Remote Display on the workstation and port where the Delphi
display is connected.

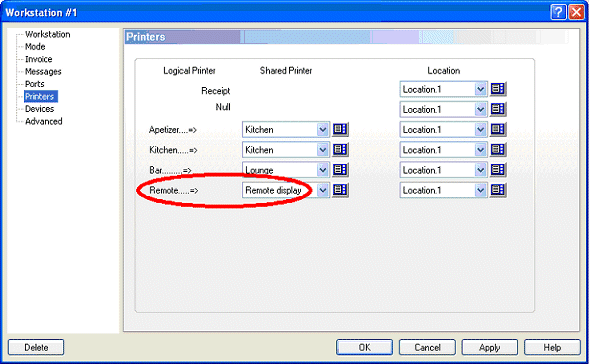

P.O.S. Control / Workstation / Options / Printers
Set the Remote display Logical Printer to the Shared Delphi.
