Technical Note: 20011004143
(Maitre'D 2002-2003)
SHARP 5300-5700 Com3-4 Printer Cables
It is possible to use a printer on COM3 and COM4 for the SHARP UP-5300
and SHARP UP-5700.
Maitre'D Configuration

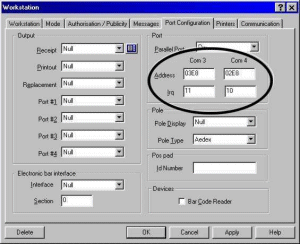

P.O.S. Control / Workstation / Options / Port Configuration
Fill in Com 3 and Com 4 as follow:
| |
Com3 |
Com4 |
| Address |
03E8 |
02E8 |
| Irq |
11 |
10 |
Cable Pin-Out
Create a cable between your SHARP and your serial printer as follow:
