Technical Note: 20011004141

SHARP ER01PU Printer

(Maitre'D 2002, and later versions of Maitre'D)

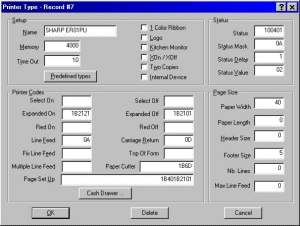

P.O.S. Control / Workstation / Printer type

Set all switches to off except switch 7 of bank 1* which should be on.
This setting gives 9600 Baud.
Use a blue green coded plug on the printer and an orange coded plug on the workstation side.

Note: The bank 1 switch is the one toward the front of the printer.
