Technical Note: 20050308017

SHARP UP-X500 Setup

(Maitre'D 2003, from Service Pack 8 and later versions of 2003)

SHARP OPOS Driver Setup

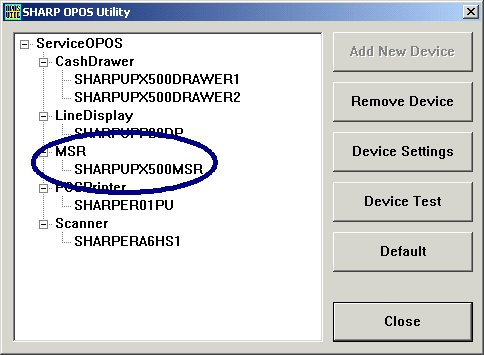

1. Start the SHARP OPOS Utility

From the list of devices, select the device you need to configure, for example the SHARPUPX500MSR, and click on "Device Settings". When the system prompts you for a logical device name, you can keep the default setting.

Maitre'D OPOS Driver Setup

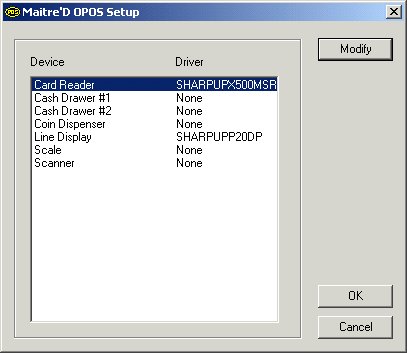

2. Start the Maitre'D POS Workstation installation program.

During that process, when the system prompts to install OPOS drivers, click "Yes", and select the device you want to install on your POS. In this example, select the Card Reader, and click on "Modify", to associate it with the SHARPUPX500MSR OPOS driver.

Maitre'D Back-Office Device Setup

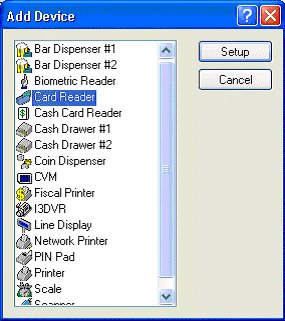

P.O.S. Control / Workstation / Options / Devices / Card Reader / Setup

Type:

Device

Driver:

OPOS
