Technical Note: 20011004145
Star TSP200
(Maitre'D 2002, and later versions of Maitre'D)

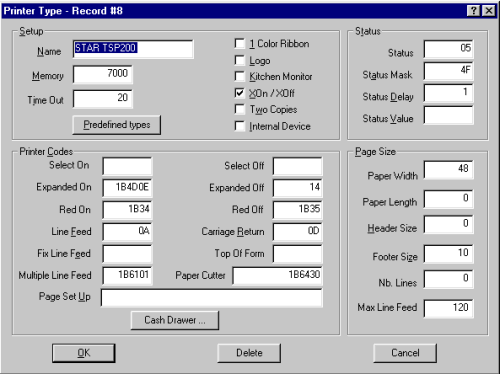

P.O.S. Control / Workstation / Printer type
This printer can function both as serial or parallel:
Bank 1: Dip Switch 8 OFF = PARALLEL
Bank 1: Dip Switch 8 ON = RS232 (Serial)
| WorkStation |
Printer |
| DB9 |
DB9 |
| 3 |
2 |
| 2 |
3 |
| 7 |
6 |
| 8 |
4 |
| 5 |
5 |
| 4 |
|
| 6 |
|
* Cash Drawer is NOT supported
