Technical Note: 20050331124

Motorola / Symbol Handheld MC 50

(Maitre'D 2005 and later versions of Maitre'D)

P.O.S. Control / Workstation / Options / Advanced

Operating System:

Windows CE .NET

Note: Motorola now only ships this unit with Windows Mobile, which is NOT supported by Maitre'D)

Workstation Type:

Small Device:

Note: 64 Mb of Memory is required.

Note: Once you click on 'OK', the system will prompt you with the following message;
'The modifications require to make the workstation data...'
Click 'Yes' to refresh all workstation data.

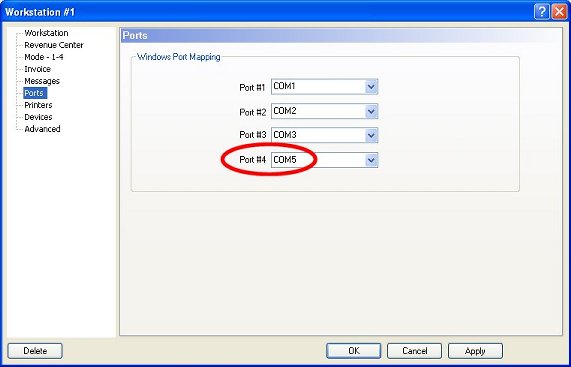

P.O.S. Control / Workstation / Options / Ports

The card reader is on COM 5, but Maitre'D only allows up to Port # 4, therefore, you need to map Serial Port # 4 to COM 5.

Port # 4:

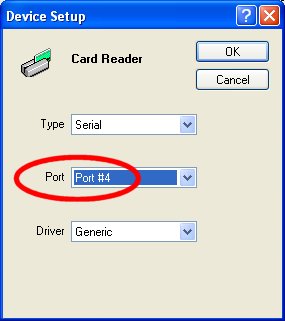

P.O.S. Control / Workstation / Options / Devices / Card Reader

Type:

Port:

Driver:

P.O.S. Control / Workstation / Options / Devices / Scanner

Type:

Driver:
